Lancair MAKO

Explore the new Lancair Mako

Better performance and more options than other 4-place aircraft.
Mako is customized, not compromised.


Compare the Lancair Mako and Turbo Mako to other 4-place aircraft

Normally Aspirated Aircraft

Highlights
Lancair Mako Cirrus SR-22 Mooney Ovation Ultra
Engine IO-540 / IO-550 IO-550-N IO-550-G
BRS Parachute optional Standard n/a
Air Conditioning Optional n/a Optional
Icing Protection Kelly ThermaWing FIKI Optional
Baggage Capacity (lbs) 175 130 120
EFII (FADEC) engine controls Optional, 8k Standard
Build Services 100k est. Standard
Typical Cost Including Build $350,000
base price
$539,900
base price
$689,000
base price
More specs
Lancair Mako Cirrus SR-22 Mooney Ovation Ultra
Base Price $350,000 $539,900 $689,000
Fully Optioned $475,000 $762,900 n/a
Specifications
Engine IO-540 / IO-550 IO-550-N IO-550-G
Horsepower 300 310 310
Manifold Hg" 30 30
Max RPM 2700 2700
Useable Fuel 75 gal (opt. 109 gal) 81 gal 100 gal
Gross Weight 3550 3400 3368
Empty Weight 2200 2250 2244
Useful Load 1350 1150 1130
Full Fuel Payload 702 502 530
Glass Panel G3X Touch G-2000 G1000 NXi
SVT Standard Standard
WAAS Standard optional
ESP Optional ?
Data Logging optional
Icing Protection Kelly ThermaWing FIKI Optional
BRS Parachute optional Standard n/a
AmSafe Seat Belts optional Standard
Speed Brakes optional n/a Standard
Built-in Oxygen optional Optional
Max Altitude 18000 12500 20000
Seating Capacity 4 4 4
Performance
Max Cruise KTAS 200 180 195
at Cruise Altitude 9,000 ft 8,000 ft 8,000 ft
fuel consumption 12.5 gph 12.8 gph 19 gph
Typ. Cruise KTAS 190 169 186
at Cruise Altitude 12,000 ft 14,000 ft 12,000 ft
fuel consumption 14.0 gph 13.1 gph 14.0 gph
Takeoff (50' obstacle) 1432 2300
Takeoff Ground Roll 600 912 1600
Rate of Climb (fpm) 2000 1300 1300
Time to Climb (ALT) 24 min (12.5K) 10 min (10K)
Typ. Cruise Range (nm) 1400 876 1080
Vne 220 KCAS 200 KIAS 195 KIAS
Vno 124 KCAS 127 KIAS 124 KIAS
Vo 133 KIAS
Vfe (1st notch of flaps) 123 KIAS 119 KIAS
Vfe (full flaps) 123 KIAS 104 KIAS 110 KIAS
Stall Speed - landing 62 KIAS 59 KIAS
Stall Speed - clean 68 KIAS 66 KIAS
Vgo (GEAR OPERATION) 120 KIAS N/A
Vge (GEAR EXTENDED) 125 KIAS N/A
Landing 800 1141 1100

Turbo Charged Aircraft

Highlights
Lancair T-Mako Columbia 400 Cirrus SR-22T G3 Corvalis / TTX Mooney Acclaim Ultra
Engine TIO-540 / TSIO-550 TSIO-550-C TSIO-550-K TSIO-550-C TSIO-550-G
BRS Parachute optional n/a Standard n/a
Air Conditioning Optional Optional Optional Optional n/a
Icing Protection Kelly ThermaWing TKS / Kelly optional FIKI Optional FIKI option
Baggage Capacity (lbs) 175 120 130 120 120
EFII (FADEC) engine controls Optional, 8k n/a n/a
Build Services 100k est. n/a
Typical Cost Including Build $385,000
base price
Used Only $639,900
base price
$715,000*
base price
$769,000
base price
*out of production
More specs
Lancair T-Mako Columbia 400 Cirrus SR-22T G3 Corvalis / TTX Mooney Acclaim Ultra
Base Price $385,000 Used Only $639,900 $715,000* $769,000
Fully Optioned $510,000 Used Only $862,900 n/a n/a
Specifications
Engine TIO-540 / TSIO-550 TSIO-550-C TSIO-550-K TSIO-550-C TSIO-550-G
Horsepower 350 310 315 310 280
Manifold Hg" 36 35.5" 37.5" 35.5"
Max RPM 2700 2600 2500 2600
Useable Fuel 75 gal (opt. 109 gal) 102 gal 92 gal 102 gal 100 gal
Gross Weight 3550 3600 3400 3600 3368
Empty Weight 2250 2635 2320 2530 2378
Useful Load 1300 950 1080 1070 996
Full Fuel Payload 652 302 432 458 384
Glass Panel G3X Touch G-1000 G-1000 G-2000 G1000 NXi
SVT Standard Standard Standard Standard
WAAS Standard Standard Standard Standard
ESP ? n/a Standard Standard
Data Logging optional Standard Standard Standard
Icing Protection Kelly ThermaWing TKS / Kelly optional FIKI Optional FIKI option
BRS Parachute optional n/a Standard n/a
AmSafe Seat Belts optional n/a Standard n/a
Speed Brakes optional Standard n/a Standard Standard
Built-in Oxygen optional Standard Standard Standard
Max Altitude 28000 25000 25000 25000 20000
Seating Capacity 4 4 4 4 4
Performance
Max Cruise KTAS 245 235 213 235 242
at Cruise Altitude 25,000 ft 25,000 ft 25,000 ft 25,000 ft 25,000 ft
fuel consumption 18.3 gph 24.9 gph 21.6 gph
Typ. Cruise KTAS 225 223 201 227 227
at Cruise Altitude 25,000 ft 25,000 ft 25,000 ft 25,000 ft 18,000 ft
fuel consumption 16.3 gph 21.5 gph 21.3 gph
Takeoff (50' obstacle) 1800 1900 1267 1900
Takeoff Ground Roll 1200 822 1200 1900
Rate of Climb (fpm) 1800 1450 1300 1450
Time to Climb (ALT) 20 min (25K) 26 min (25K) 20 min (25K) 7 min (10K)
Typ. Cruise Range (nm) 1100 1100 850 1100
Vne 220 KCAS 230 KIAS 200 KIAS 230 KIAS 195 KIAS
Vno 124 KCAS 181 KIAS 127 KIAS 181 KIAS 124 KIAS
Vo 138 KIAS 133 KIAS 138 KIAS
Vfe (1st notch of flaps) 123 KIAS 127 KIAS 119 KIAS 127 KIAS
Vfe (full flaps) 123 KIAS 112 KIAS 104 KIAS 112 KIAS
Stall Speed - landing 58 KIAS 59 KIAS 62 KIAS 59 KIAS
Stall Speed - clean 65 KIAS 72 KIAS 73 KIAS 72 KIAS
Vgo (GEAR OPERATION) 120 KIAS N/A
Vge (GEAR EXTENDED) 125 KIAS N/A
Landing 1260 1411 1260
*out of production

PERFORMANCE perfected – outperforms the competition at every turn

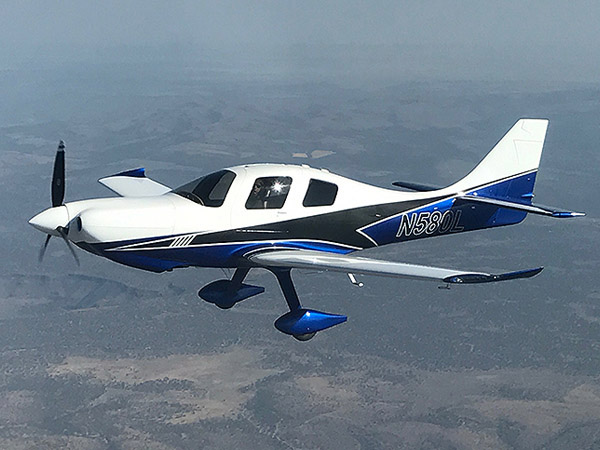

Introduced at EAA AirVenture 2017, the MAKO is the sleek new 4-place design from legendary composite aircraft pioneer Lancair.

With Mako, the emphasis is on usable performance - not just 'bragging rights' but real world responsiveness you can count on every day. Starting with a sturdy composite airframe that's built to stringent utility class standards, the Mako is designed for the long haul.

Painstaking aerodynamic refinement helps you get the maximum out of every gallon of fuel without compromising the Mako's nimble, yet docile handling characteristics. Carefully shaped LED wingtips minimize roll coupling while providing more illumination than even a 747! Finally, the (optional) auto-retracting nose gear adds 10-12 knots of cruise speed by eliminating the high-drag nose gear from the turbulent prop wash - without the potential insurance penalty of a fully retractable gear aircraft.

Ultimate performance is, of course, dependent on the powerplant. And Mako's robust airframe is engineered to accommodate multiple engine options. Select from a variety of Continental or Lycoming motors - normal or turbocharged - that best match your 'sweet spot' for power, range, altitude and fuel consumption.

In short, the Mako offers an unequaled range of options to meet your mission requirements, providing a beautiful, capable and easy-to-fly alternative to Cirrus and Cessna TTx at a fraction of the cost.


INNOVATION implemented – exhilarating and efficient

When we looked at the design of other four-seat airplanes, we saw plenty of room for improvement. And more room is what you get. Mako's interior is a spacious 46 inches across and 48 inches in height. Along with the generous shoulder and headroom, passengers enjoy outstanding visibility through large windows and the one-piece windshield. Space is also maximized in the ample baggage area, where you can carry all the gear you need for a lengthy trip.

To keep your passengers seated in comfort, we've included inflatable door seals that keep the cabin shielded from whistling wind and engine noise. A custom sound-proofing package, developed exclusively for Lancair, is available to make the cabin even quieter.

But comfort and convenience doesn't mean sacrificing speed. With a standard Lycoming IO-540 engine, you can cruise smoothly at 220 mph. Climb rate, takeoff distance and range set new benchmarks for power, performance and efficiency. Plus, thanks to our precision tuned induction system, fuel consumption is 10-15% less than other similarly powered aircraft.

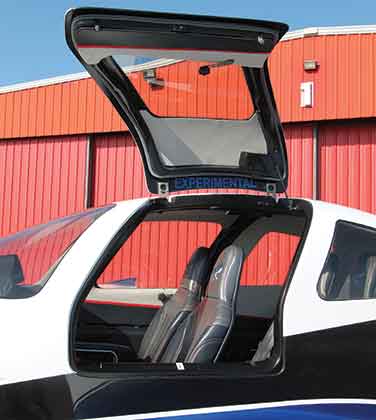

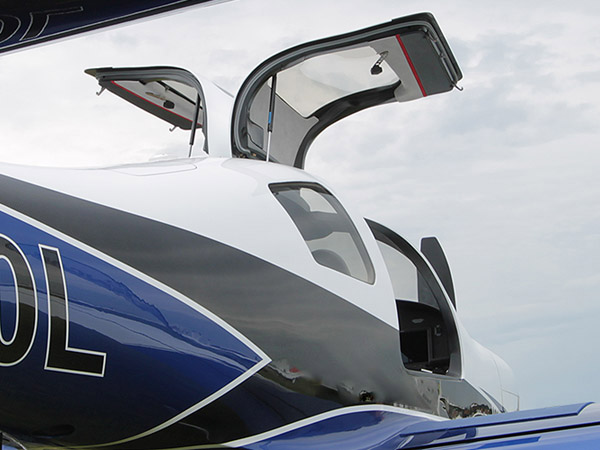

Innovation is key to Mako's performance. The auto-retractable nose gear streamlines Mako's aerodynamics while twin gullwing-style cabin doors make cabin access easy for passengers and pilot alike. New high-style wingtips improve handling by reducing roll coupling, while improving nighttime visibility with 600,000 candela of high-intensity LED light - brighter than a Boeing 747!

The new Lancair Mako synthesizes 35 years of aviation experience into one unforgettable aircraft. An ideal balance of comfort and capability at a price no comparable plane can match.


COMFORT & CONVENIENCE

From the moment you settle into the seat and pull the gullwing door closed, you'll feel like the Mako was made for you. The sleek aesthetic of the aircraft's exterior is echoed in the purposeful interior design. Like a premium sports sedan, Mako's cabin provides an inviting environment with superb visibility and exceptional control.

Mako's cabin design is driven by ergonomics as much as by aerodynamics. Behind the raked panoramic windshield is a cozy, comfortable cockpit, optimized for piloting from either side. The center console stick and dual side-mounted throttles offer pilots an easy-to-fly aircraft that makes even long flights a relaxing experience.

Supple ergonomic seating keeps passengers comfy and secure, while careful attention to streamlining, form and fit ensures a quiet cabin with minimal noise and vibration. And interior customization is virtually unlimited. From the outside in, optional upgrades include everything from dual gullwing doors, articulating seats and electric freon air conditioning to inflatable shoulder harnesses and state of the art entertainment and lighting packages.

The real test is a long-range flight. After comparing to a 5 or 6 hour flight in a Cirrus or a TTx, the Mako's form-fitting seats and comfortable control layout will ensure you touch down feeling rested and ready for whatever's next.



AVIONICS

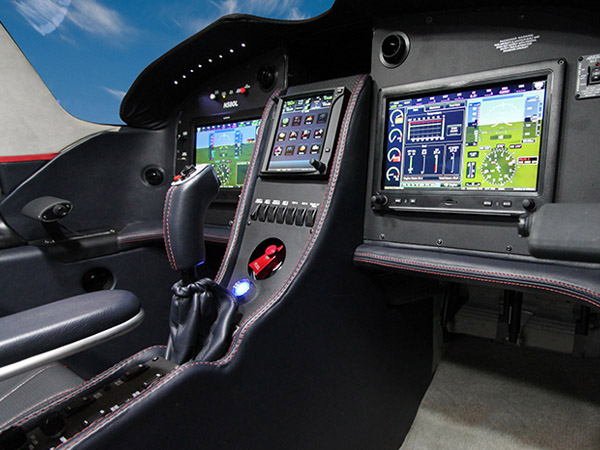

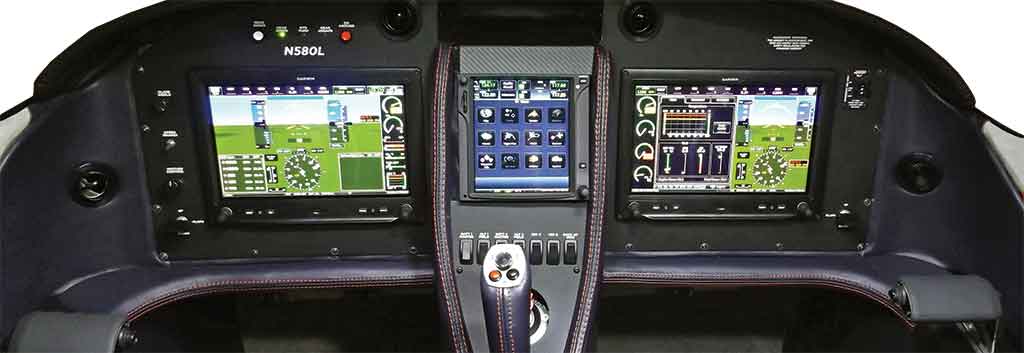

Just below Mako's panoramic windscreen lies a clean, uncluttered instrument panel, designed to embrace the pilot with essential information and superb visibility. The 'pistol-grip' style control stick emerges from a center console designed to easily accommodate a Garmin GTN-750 Com/Nav/GPS unit. Simple, intuitive controls for engine start, fuel and essentials are fingertip-accessible, while ample space for dual Garmin touchscreen PFD/MFD displays resides in direct view of both front seat occupants.

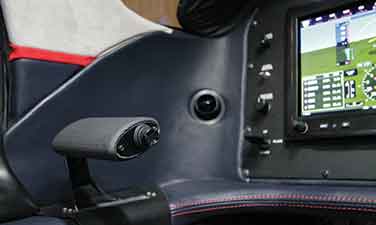

Dual side-mounted throttles make fine engine control a snap, while integral air conditioning vents and LED lighting keep the cockpit comfortable and well illuminated in any weather conditions.

Perhaps the best attribute of Mako's avionics, however, is the opportunity to customize your panel to your specific desires and budget. Lancair's avionics design experts are ready to help you engineer a purpose-built cockpit that is perfectly suited to your preferences. With high-capacity electrical supply and ample space for expansion both on the panel and behind it, Mako is ready for whatever avionics suite you can imagine.


Explore the options.

Click here to price out your Mako, and learn all the available options.


Building Your Mako.

Originally created in 1999, our Builder Assist Program set out to help jump-start our builders and cut off up to a year of build time. The program teaches proper composite skills, provides you with experienced technical assistance in the crucial early stages of your aircraft assembly and allows a major portion of your aircraft to be completed in record time.

Conducted at our facility in Uvalde, Texas, our Builder Assist Program allows you to completely close out both wings, horizontal stabilizer and elevators in a single week. Stay for a second week and install your door, windshield and windows. Lancair provides the fixtures, tools, supplies and one-on-one training, letting you head home with not only a lot accomplished, but also the knowledge and confidence to quickly and accurately complete your airframe.

We have expanded the Builder Assist Program to include the option to finish building your airplane at our facilities, with our guidance, in our optional Builder Completion Program. In just a matter of weeks you will be flying home in your new Mako.


Experience Lancair Performance for Yourself.

Because seeing is believing, we invite you to visit our facilities and experience the Mako and our Builder Assist Program first-hand. More than just a simple factory tour, we’ll illustrate to you the insight, the process and the attention to detail that make Lancair aircraft the finest in the sky, and among the easiest to construct in the kit aircraft industry. Then, after a demo ride in the Mako, you’ll be convinced. Mako combines speed, utility and incredible ramp appeal-all in one elegant, cost-effective package.

That’s the Lancair difference. That’s Lancair performance.
